mekiTiming

DlyOff

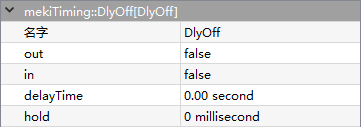

DlyOff component

DlyOff delays the on to off transition by a time delay.

Parameters:

  • Out (boolean) – Output value

  • In (boolean) – Input value

  • DelayTime (integer, second) – Delays time from on to off transition

  • Hold (integer, millisecond) – Countdown of delay time

DlyOn

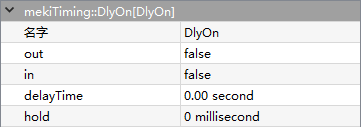

DlyOn component

DlyOn delays the off to on transition by a time delay.

Parameters:

  • Out (boolean) – Output value

  • In (boolean) – Input value

  • DelayTime (integer, second) – Delays time from off to on transition

  • Hold (integer, millisecond) – Countdown of delay time

OneShot

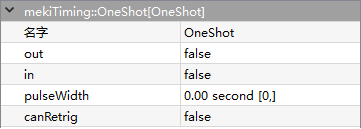

OneShot component

OneShot generating boolean one-shot pulse. Out = true for pulseWidth sec, beginning at rising edge of In, the pulse retriggers on each rising edge of In, when canRetrig = true.

Parameters:

  • Out (boolean) – Output value

  • In (boolean) – Input value

  • PulseWidth (integer, second) – Pulse width

  • CanRetrig (boolean) – Enable the retrigger function

Override

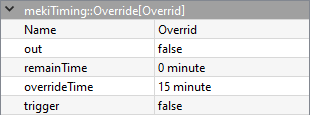

Override component

Override provide output of true for OverrideTime during Trigger is triggered from false to true. The remaining override time is counted in RemainTime.

Parameters:

  • Out (boolean) – Output value

  • RemainTime (integer, minute) – Remaining override time

  • OverrideTime (integer, minute) – Override time

  • Trigger (boolean) – Triggers the component start

Timer
Timer component

Timer outputs a pulse for the configured amount of Time, Run is used to trigger the timer:

  • If low, Out is forced to be false

  • If high, Out = 1 until timer reaches time seconds

Alternatively, the pulse can be fired from the “start Timer” action if in is not linked.

Parameters:

  • Out (boolean) – Output value

  • Run (option) – fire the timer on transition from false to true

  • Time (integer, second) – Duration of output pulse

  • Left (integer, second) – Remaining time before output transition from true to false
