mekiSchedule

DailyScheduleBool

DailyScheduleBool produce scheduler output, according to the scheduled time setting. The output value is Boolean.

Parameters:

StartHour1 (integer) – The first start session time of hour. Format is “0 - 23”
StartMinute1 (integer) – The first start session time of minute. Format is “0 - 59”
StopHour1 (integer) – The first stop session time of hour. Format is “0 - 23”
StopMinute1 (integer) – The first stop session time of minute. Format is “0 - 59”
StartHour2 (integer) – The second start session time of hour. Format is “0 - 23”
StartMinute2 (integer) – The second start session time of minute. Format is “0 - 59”
StopHour2 (integer) – The second stop session time of hour. Format is “0 - 23”
StopMinute2 (integer) – The second stop session time of minute. Format is “0 - 59”
Out (boolean) – Output value
Val1 (boolean) – First session default output
Val2 (boolean) – Second session default output
Def (boolean) – Default output

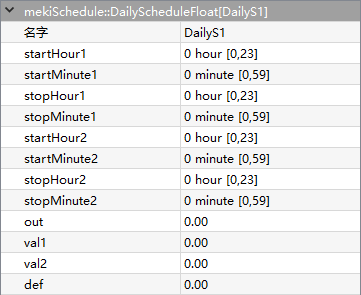

DailyScheduleFloat

DailyScheduleFloat produce scheduler output, according to the scheduled time setting. The output value is floating value.

Parameters:

StartHour1 (integer) – The first start session time of hour. Format is “0 - 23”
StartMinute1 (integer) – The first start session time of minute. Format is “0 - 59”
StopHour1 (integer) – The first stop session time of hour. Format is “0 - 23”
StopMinute1 (integer) – The first stop session time of minute. Format is “0 - 59”
StartHour2 (integer) – The second start session time of hour. Format is “0 - 23”
StartMinute2 (integer) – The second start session time of minute. Format is “0 - 59”
StopHour2 (integer) – The second stop session time of hour. Format is “0 - 23”
StopMinute2 (integer) – The second stop session time of minute. Format is “0 - 59”
Out (real) – Output value
Val1 (real) – First session default output
Val2 (real) – Second session default output
Def (real) – Default output

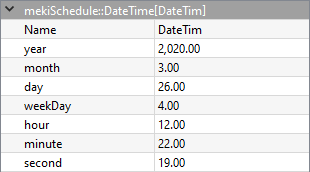

DateTime

DateTime provide the current RTC time for reference (read only).

Parameters:
