mekiRegs

DDC28P/IO22U/28U/28P/KXM16P/22P/IP0080

BooleanPoint
BooleanPoint component

Boolean Point is used to access to controller Boolean point type (read only) register = Modbus discrete input. The register address is 0-based whereby controller documented address is 1-based.

Parameters:

  • Addr (address) – Boolean point register address, a total of 16 non-repeating address (from 2000 to 2015)

  • In (boolean) – Boolean point register (read only) input value

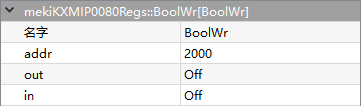

BooleanWritable
BooleanWritable component

Boolean Writable is used to access to controller Boolean writable type register = Modbus coil output. The register address is 0-based whereby controller documented address is 1-based.

Parameters:

  • Addr (address) – Boolean writable register address, a total of 16 non-repeating address (from 2000 to 2015)

  • Out (boolean) – Boolean writable register output value

  • In (boolean) – Input value

ShortPoint
ShortPoint component

Short Point is used to access to controller short point type (read only) register = Modbus input register (16-bits integer). The register address is 0-based whereby controller documented address is 1-based.

Parameters:

  • Addr (address) – Short point register address, a total of 16 non-repeating address (from 2000 to 2015)

  • In (integer) – Short point register (read only) input value

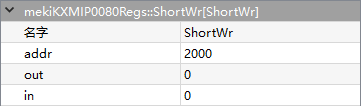

ShortWritable
ShortWritable component

Short Writable is used to access to controller short writable type register = Modbus holding register (16-bits integer). The register address is 0-based whereby controller documented address is 1-based.

Parameters:

  • Addr (address) – Short writable address, a total of 16 non-repeating address (from 2000 to 2015)

  • Out (integer) – Writable register output value

  • In (integer) – Input value

FloatPoint
FloatPoint component

Float Point is used to access to controller float point type (read only) register = Modbus input register (floating point). The register address is 0-based whereby controller documented address is 1-based.

Parameters:

  • Addr (address) – Float point address, a total of 16 non-repeating address (from 2016 to 2046)

  • In (real) – Float point register (read only) input value

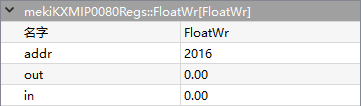

FloatWritable
FloatWritable component

Float Writable is used to access to controller float writable type register = Modbus holding register (floating point). The register address is 0-based whereby controller documented address is 1-based.

Parameters:

  • Addr (address) – Float writable address, a total of 16 non-repeating address (from 2016 to 2046)

  • Out (real) – Float Writable register output value

  • In (real) – Input value

LongPoint
LongPoint component

Long Point is used to access to controller long point type (readonly) register = Modbus input register (32-bits integer). The register address is 0-based whereby controller documented address is 1-based.

Parameters:

  • Addr (address) – Long point address, a total of 16 non-repeating address (from 2016 to 2046)

  • In (integer) – Long point register (read only) input value

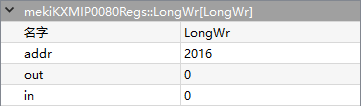

LongWritable
LongWritable component

Long Writable is used to access to controller float writable type register = Modbus holding register (floating point). The register address is 0-based whereby controller documented address is 1-based.

Parameters:

  • Addr (address) – Long writable address, a total of 16 non-repeating address (from 2016 to 2046)

  • Out (integer) – Long Writable register output value

  • In (integer) – Input value
