TempTable

TempTable is an object for user to define the temperature sensor table resistance value versus the temperature value according to the manufacturer specifications. User may use this object if any of the preset objects in this kit is not suitable.The property sheet of the object is shown below.

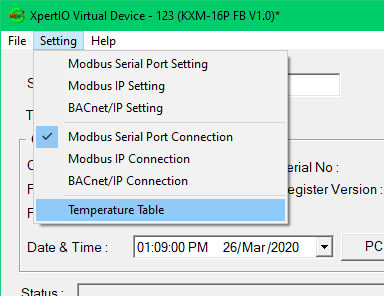

The temperature table setting can be done in Virtual Device Software, under menu Setting->Temperature Table.

Parameters:

• Table –

  Table is referred to the temp table from number 1 to 8 where it is user customizable. Table 9 to 16 is predefined table and is not editable. Table 9 to 16 is preset to temp table as below image.

  Analog Input Temperature Table Selection
  Temperature Table Index	Type of Temperature Sensor
  1-8	User defined Table 1-8 (default = table 9-16)
  9	NTC 10K Type 2
  10	NTC 10K Type 2 Shunt 11K
  11	NTC 10K Type 3
  12	NTC 10K Type 3 Shunt 11K
  13	NTC 3K
  14	NTC 20K
  15	RTD 1K Platinum
  16	RTD 1K Balco

• Temperature (real) – Temperature value tied back to Resistance (30 lines)

• Resistance (real) – Resistance value tied back to Temperature (30 lines)

• Default (function) – Restore function to default settings

• Add (function) – Increase function for the temperature and the resistance of the contrast relationship, in less than 30 groups

• Delete (function) – Delete function for the temperature and the resistance of the contrast relationship

• Edit (function) – Edit function for the temperature and the resistance of the contrast relationship

• Save (function) – Save function for modified content
