mekiLogic

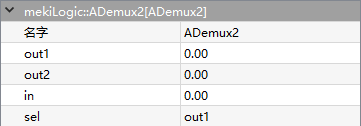

ADemux2

ADemux2 outputs the input value according to selected the output channel.

Parameters:

• Out1 (real) – Equal to In when Sel is Out1, otherwise remains unchanged

• Out2 (real) – Equal to In when Sel is Out2, otherwise remains unchanged

• In (real) – Input value

• Sel (option) – Select the output channel, Out1 or Out2

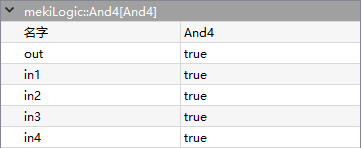

And4

And4 performs a logical AND towards all inputs and writes the result to the out property.

In1	In2	In3	In4	Out
false	false	false	false	false
true	false	false	false	false
false	true	false	false	false
false	false	true	false	false
false	false	false	true	false
true	true	false	false	false
true	false	true	false	false
true	false	false	true	false
false	true	true	false	false
false	true	false	true	false
false	false	true	true	false
true	true	true	false	false
true	true	false	true	false
true	false	true	true	false
false	true	true	true	false
true	true	true	true	true

truth table when using four inputs.

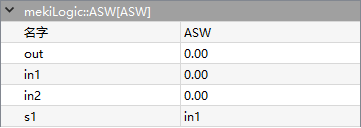

ASW

ASW outputs the input value according to selected the input channel.

Parameters:

• Out (real) – Equal to In1 when S1 is In1, otherwise equal to In2

• In1 (real) – Input value

• In2 (real) – Input value

• S1 (option) – Select the input channel, In1 or In2

B2P

B2P is short of “Boolean to pulse”. It outputs a pulse signal when input value is made to true.

Parameters:

• Out (boolean) – Pulse signal output

• In (boolean) – Input value

BSW

BSW outputs the input values according to selected the input channel.

Parameters:

• Out (boolean) – Equal to In1 when S1 is In1, otherwise equal to In2

• In1 (boolean) – Input value

• In2 (boolean) – Input value

• S1 (option) – Select the input channel, In1 or In2

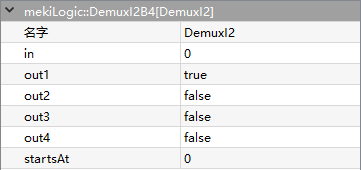

Demuxl2B4

Demuxl2B4 outputs the input values according to selected the input channel.

Parameters:

• In (integer) – Input value

• Out1-Out4 (boolean) – Only 1 Out equal to true each time base on logic: Out(x) = true, while x = In – StartsAt + 1, all Out equal to false if x > 4 and x < 1

• StartsAt (integer) – Offset value for In selection

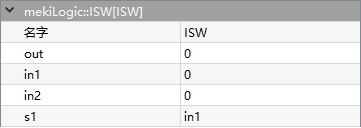

ISW

ISW outputs the input values according to selected the input channel.

Parameters:

• Out (integer) – Equal to In1 when S1 is In1, otherwise equal to In2

• In1 (integer) – Input value

• In2 (integer) – Input value

• S1 (option) – Select the input channel, In1 or In2

Not

Not outputs a contrary of the input value.

Parameters:

• Out (boolean) – Opposite value of In

• In (boolean) – Input value

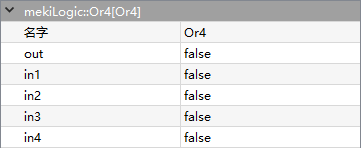

Or4

Or4 outputs the input values according to selected the input channel.

Parameters:

• Out (boolean) – Equal to true if one of the In1-In4 is true

• In1-In4 (boolean) – Input value

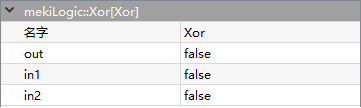

Xor

Xor outputs the input values according to selected the input channel.

Parameters:

• Out (boolean) – Equal to true if both In1 and In2 are not identical

• In1 (boolean) – Input value

• In2 (boolean) – Input value
